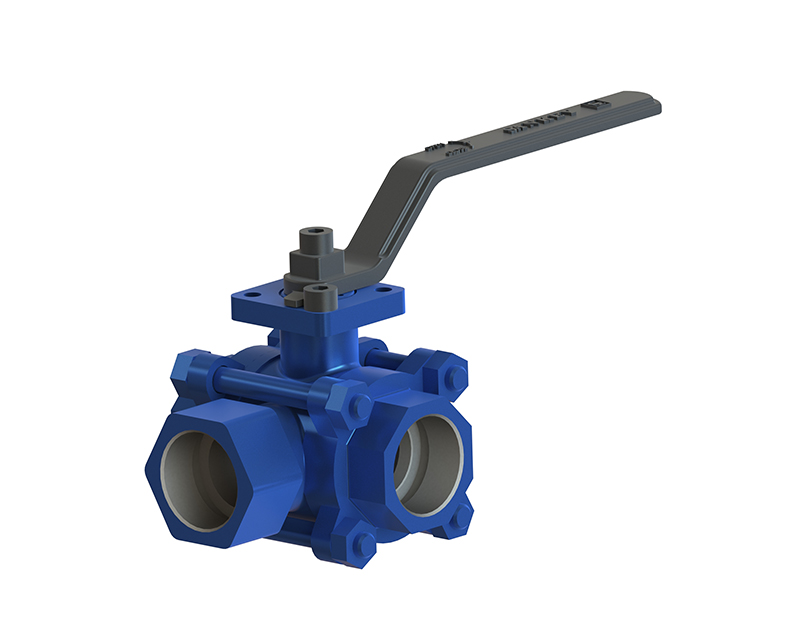

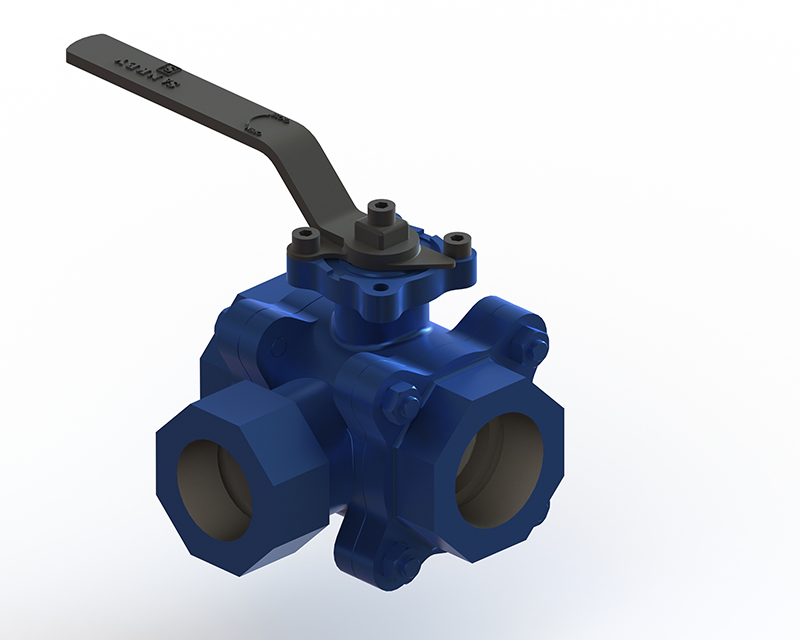

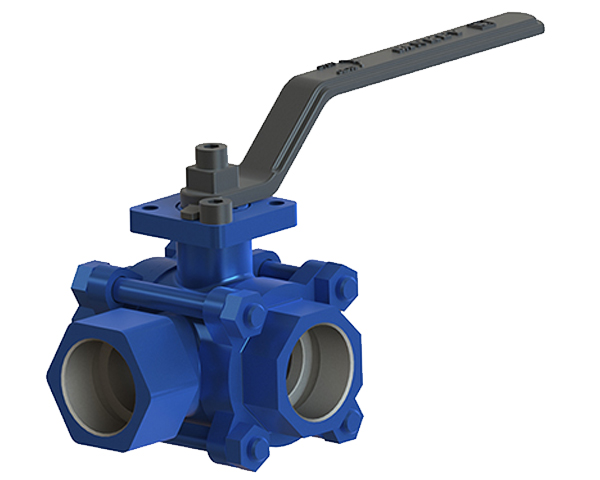

3 way Screwed / Weld End Floating Ball Valve

Enquire Now
Specifications
TYPE : Three Piece Screwed End Ball Valve
PORT : Full Bore
SIZE : 15 mm to 50mm NB
Pressure Rating :
ASME#400 PN 65
Temperature Range 35 Deg C to 280 Deg C (Soft Seated)
Body Materials Stainless Steel / Carbon Steel / Alloys
Design Standard API 6D rev 23; ISO 17292 rev 2004
Face to Face Dimension As per Manufacturer End
Fire safe design API-607 Rev 2010
Testing API 598 Rev 2009
Sour Service NACE MOR 0175 Rev 2009
Documents BS/EN 10204-3.1 REV 2004
Other Information
Technical Details

Sankey side entry 3-Way ball valve offers diverting and mixing/selection flow patterns and often eliminates the need for two valves. The L-port configuration is available as a3-piece design in two seat configuration and the full port design is easily automated as it comes in and is available with various seat materials for various pressure and temperature range.


Areas of application

Chemical/ Pharmaceutical/ Food /Pharmaceutical/ Petrochemical/ Energy/ Plastics/ Oil and Gas /Cement and lubrication

Design
  • Full Bore body, avoids clogging and ensures smooth flow when handling slurries and solid.
  • Design in compliance with ASME B16.34 / BS5351.
  • Body cavity fillers available.
  • In-Line Maintenance capability.
  • Weldable in-line without disassembly.
  • Material compliance with NACE specification.
  • Blowout proof stem
  • Low emission packing
  • Available with different combination ends (i.e Screwed / Socket weld /Butt weld )
Leakage Test
• Class VI

Actuator mounting flange
• DIN/ISO 5211

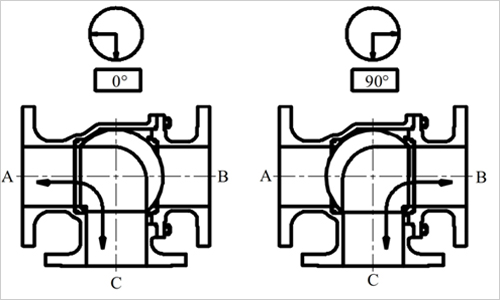

L-Port Design Configuration
BOM

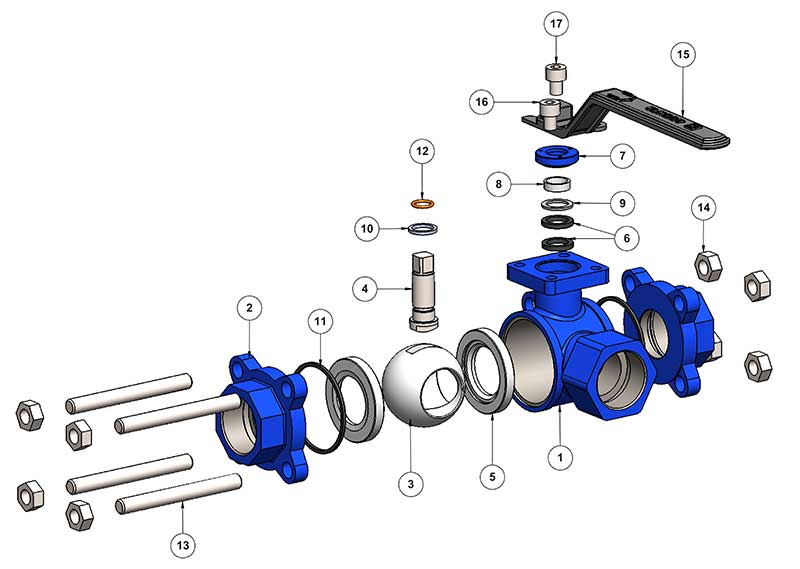

Bill of Material
SR.NO. PART NAME STAINLESS STEEL CARBON STEEL QTY
1 BODY ASTM A351 CF8M ASTM A216 WCB 1
2 END CONN. ASTM A351 CF8M ASTM A216 WCB 2
3 BALL ASTM A276 SS316 ASTM A276 SS316 1
4 STEM ASTM A479 SS316 ASTM A479 SS316 1
5 SEAT PTFE PTFE 2
6 SEAT SEAL GRAPHITE GRAPHITE 2
7 GLAND SS316 MS 1
8 GLAND BEARING DELRIN DELRIN 1
9 SPACER SS316 SS316 1
10 STEM THRUST WASHER GFT GFT 1
11 BODY SEAL GRAPHITE GRAPHITE 2
12 STEM O-RING VITON VITON 1
13 STUD ASTM A193 GR.B8 ASTM A193 GR.B7 4
14 NUT ASTM A194 GR.8 ASTM A194 GR.2H 8
15 LEVER ASTM A216 WCB ASTM A216 WCB 1
16 STOPER MS MS 1
17 ALLEN BOLT MS MS 1

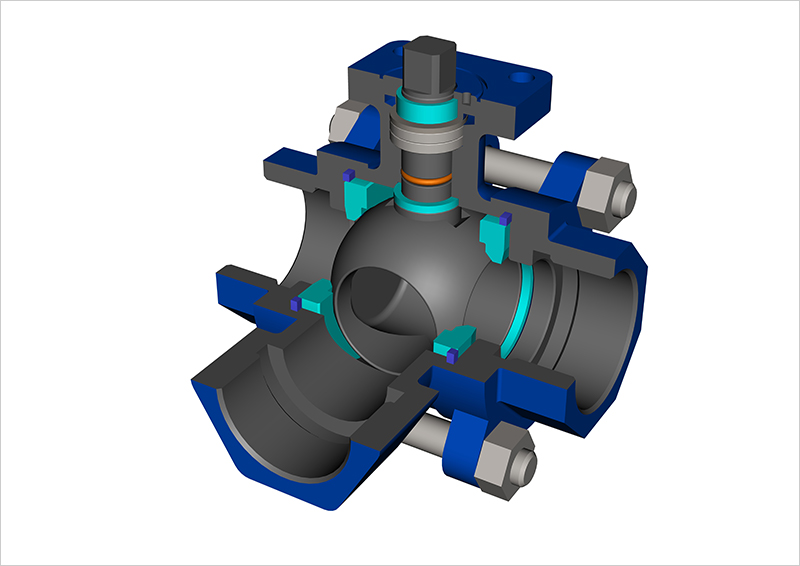

Key Features
  • Full Bore body, avoids clogging and ensures smooth flow when handling slurries and solid.
  • Body cavity fillers available
  • All sides sealed
    • All sides of the ball valve are sealed. All sides tight – independent product inlet
  • Blowout proof stem
  • Low emission packing

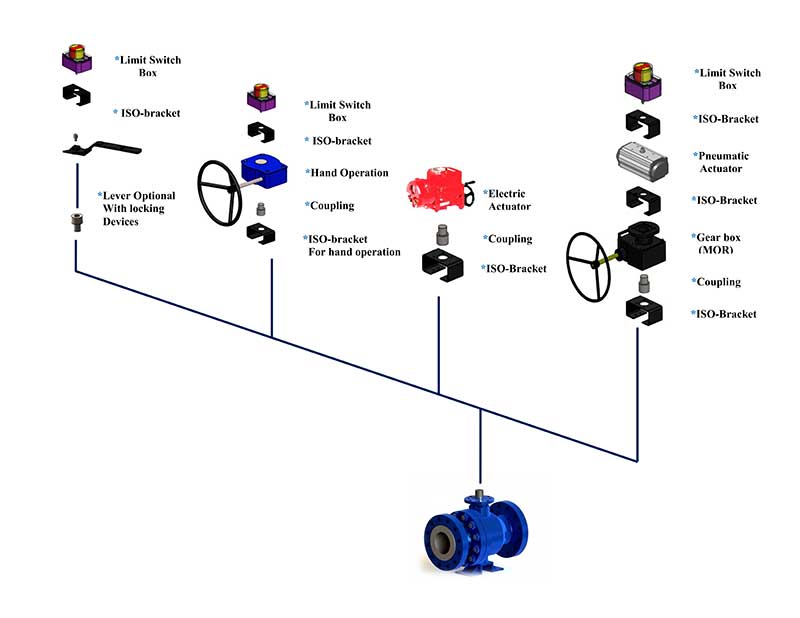

Actuation
