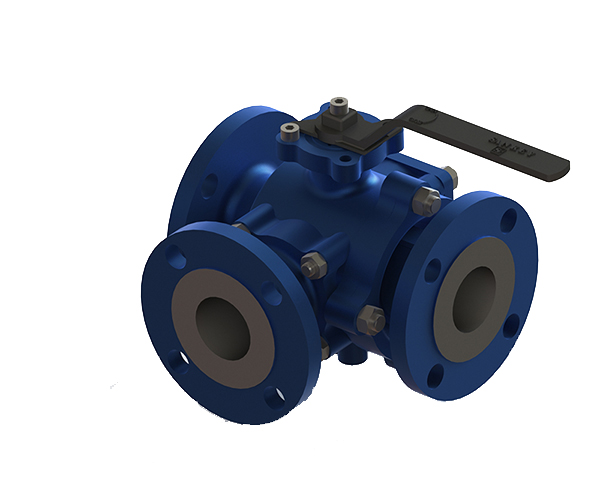

3 way T-port Floating Ball Valve

Enquire Now
Specifications
TYPE : 3 way T-port Floating Ball Valve
PORT : Full Bore
SIZE : 15 mm to 100mm NB
Pressure Rating :
ASME #150 PN 20
ASME #300 PN 50
Temperature Range 35 Deg C to 280 Deg C (Soft Seated)
Body Materials Stainless Steel / Carbon Steel / Alloys
Design Standard API 6D rev 23; ISO 17292 rev 2004
End Flanges ASME B16.5 2013
Face to Face Dimension Non Standard , As per Manufacturer Std
Fire safe design API-607 Rev 2010
Testing API 598 Rev 2009
Sour Service NACE MOR 0175 Rev 2009
Documents BS/EN 10204-3.1 REV 2004
Other Information
Technical Details

Sankey side entry 3-Way ball valve offers diverting and mixing/selection flow patterns and often eliminates the need for two valves. The T-port configuration is available as a 2 piece or 3 piece design in two seat and four seat configuration thus is extremely versatile in various configurations and the full port design is easily automated as it comes in and is available with various seat materials for various pressure and temperature range.

Areas of application

Chemical/ Pharmaceutical/ Food /Pharmaceutical/ Petrochemical/ Energy/ Plastics/ Oil and Gas /Cement and lubrication

Design
  • Full Bore body, avoids clogging and ensures smooth flow when handling slurries and solid.
  • Design in compliance with ASME B16.34 / BS5351.

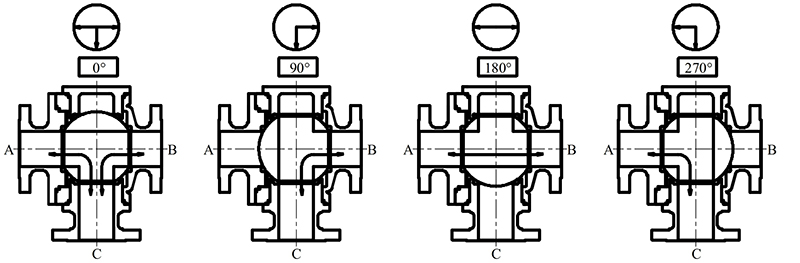

  • Flow plans for T ports can be field rearranged to meet many other flow plans
  • Body cavity fillers available
  • Material compliance with NACE specification.
  • Blowout proof stem
  • Low emission packing
  • 2-3-piece design for easy maintainability
  • Cavity filler available.
Leakage Test
• Class VI

Actuator mounting flange
• DIN/ISO 5211

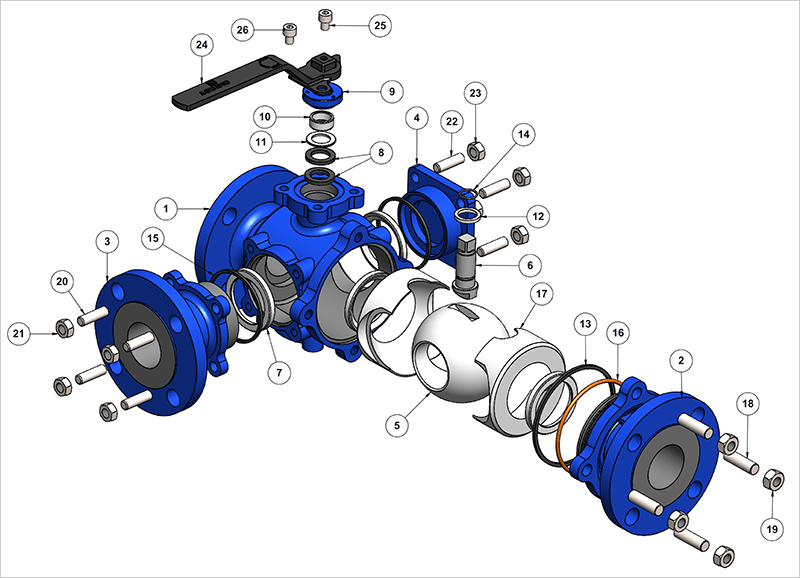

BOM



Bill of Material
SR.NO. PART NAME STAINLESS STEEL CARBON STEEL QTY
1 BODY ASTM A351 CF8M ASTM A216 WCB 1
2 END CONN. ASTM A351 CF8M ASTM A216 WCB 1
3 END CONN. SIDE ASTM A351 CF8M ASTM A216 WCB 1
4 END CONN. BACK ASTM A351 CF8M ASTM A216 WCB 1
5 BALL ASTM A276 SS316 ASTM A276 SS316 1
6 STEM ASTM A479 SS316 ASTM A479 SS316 1
7 SEAT PTFE PTFE 2
8 SEAT SEAL GRAPHITE / INCONEL GRAPHITE / INCONEL 2
9 GLAND SS316 MS 1
8 GLAND BEARING DELRIN DELRIN 1
10 SPACER SS316 SS316 1
12 STEM THRUST WASHER GFT GFT 1
13 BODY SEAL GRAPHITE GRAPHITE 1
14 STEM O-RING VITON VITON 1
15 BODY SEAL GRAPHITE GRAPHITE 2
16 END CONN. O-RING VITON VITON 2
17 CAVITY PTFE PTFE 2
18 STUD ASTM A193 GR.B8M ASTM A193 GR.B7 4
19 NUT ASTM A193 GR.8M ASTM A193 GR.2H 4
20 STUD ASTM A193 GR.B8M ASTM A193 GR.B7 4
21 NUT ASTM A193 GR.8M ASTM A193 GR.2H 4
22 STUD ASTM A193 GR.B8M ASTM A193 GR.B7 4
23 NUT ASTM A193 GR.8M ASTM A193 GR.2H 4
24 LEVER SS410 SS410 1
25 ALLEN BOLT MS MS 1
26 STOPER MS MS 1

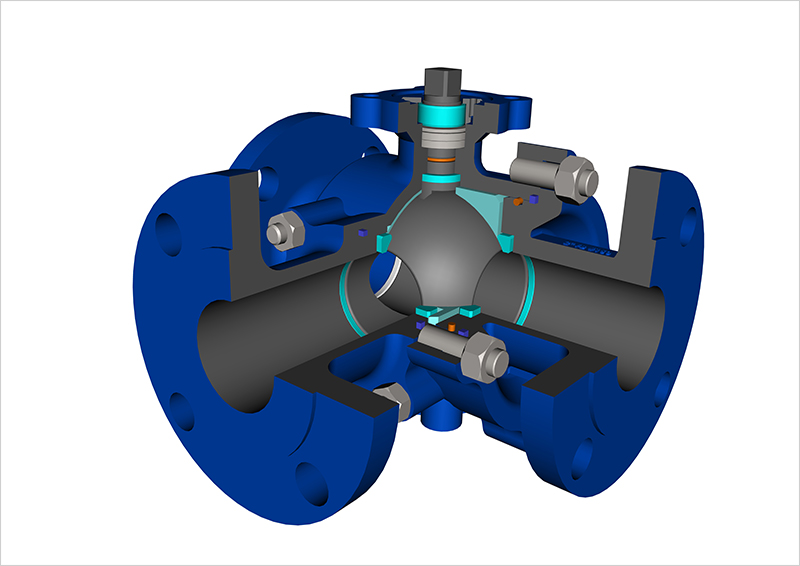

Key Features

Cavity free

The usual cavity between ball and housing in non- cavity free ball valves give cause for disturbance because residual products can crystallize, polymerize and so affect the function.

  • Clean, non- false product
  • No sediments of expensive products in the ball valve housing

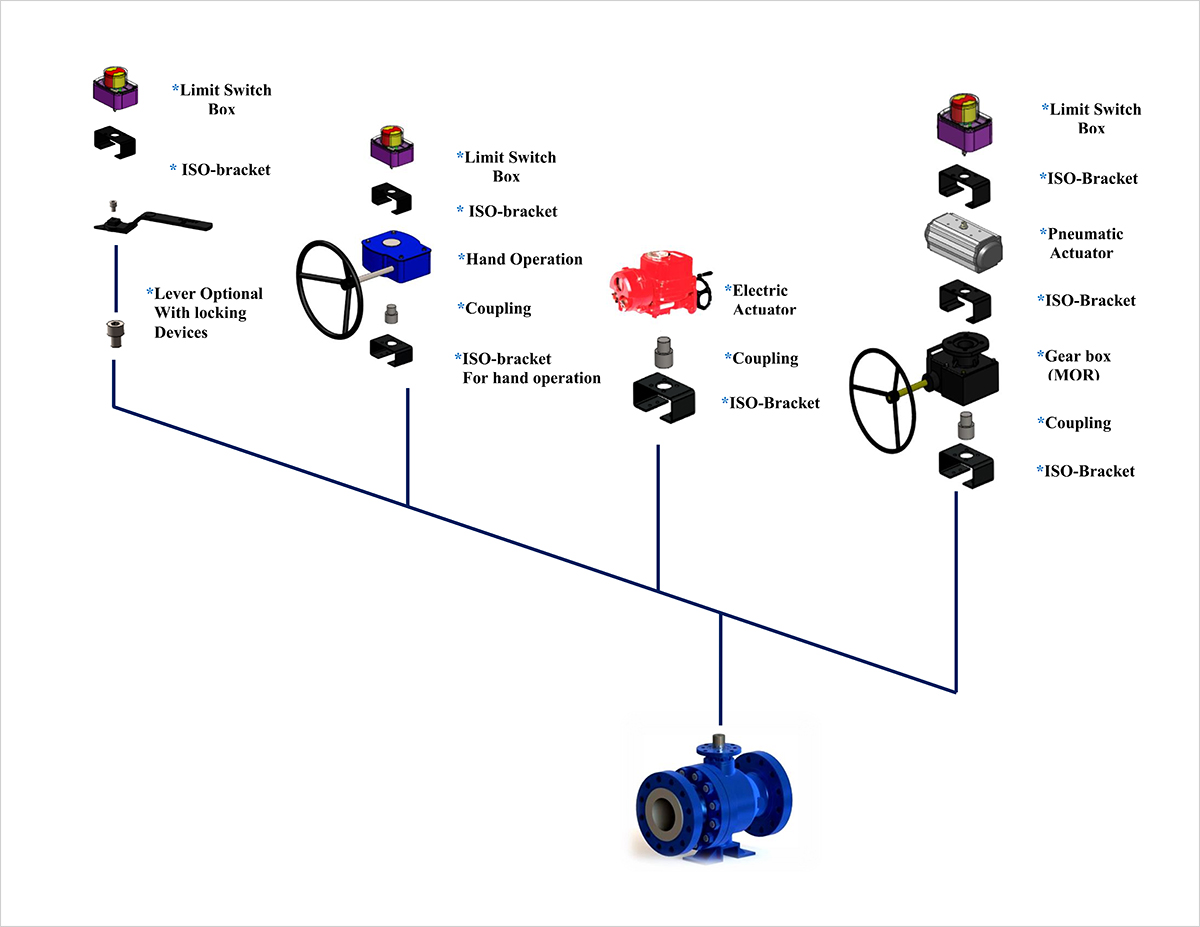

Actuation
